PFSense - Install pfSense - Configure Interface DHCP

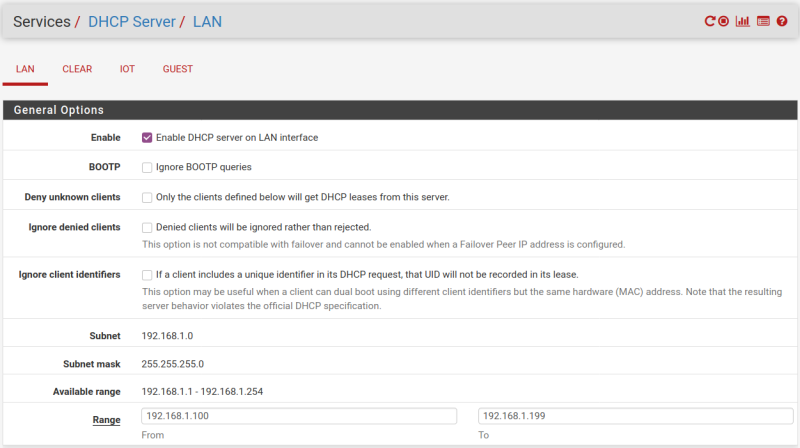

Configure DHCP for the LAN Interface
Navigate to Services → DHCP Server.
Select LAN tab and set the DHCP server as follows:
- Enabled: Checked.
- Range:
- From: 192.168.1.100.
- To: 192.168.1.199.
NOTE: Set each interface to use x.x.x.100-199 for dynamic addresses and reserve x.x.x.10-99 for static allocations.
Depending on the number of devices in your network adjust this to suit your needs.

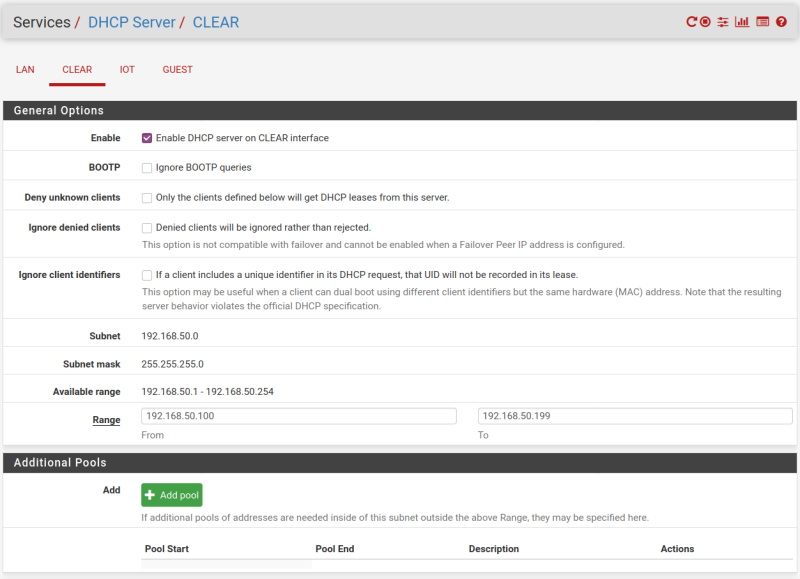

Configure DHCP for the CLEAR Interface
Navigate to Services → DHCP Server.
Select CLEAR tab and set the DHCP server as follows:
- Enabled: Checked.
- Range:
- From: 192.168.50.100.
- To: 192.168.50.199.
NOTE: Set each interface to use x.x.x.100-199 for dynamic addresses and reserve x.x.x.10-99 for static allocations.
Depending on the number of devices in your network adjust this to suit your needs.

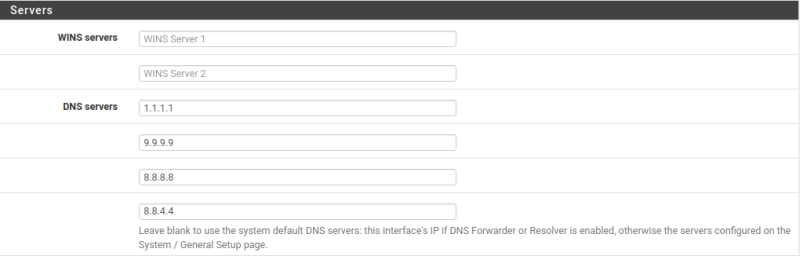

Configure external DNS providers:
NOTE: Change these as required.

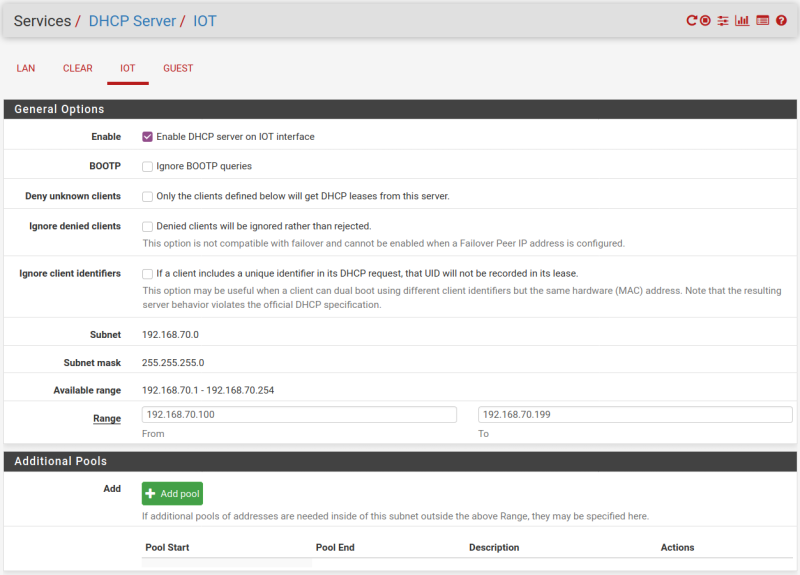

Configure DHCP for the IOT Interface
Navigate to Services → DHCP Server.
Select IOT tab and set the DHCP server as follows:
- Enabled: Checked.
- Range:
- From: 192.168.70.100.
- To: 192.168.70.199.
NOTE: Set each interface to use x.x.x.100-199 for dynamic addresses and reserve x.x.x.10-99 for static allocations.
Depending on the number of devices in your network adjust this to suit your needs.

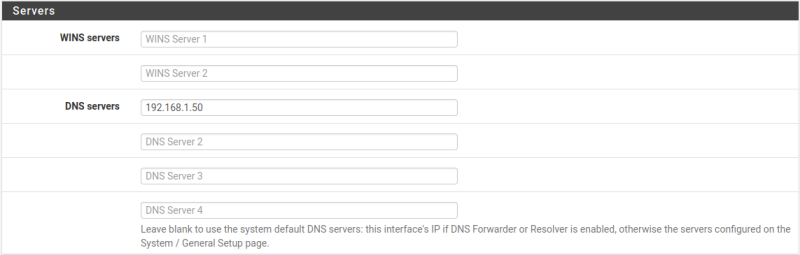

Configure external DNS providers:
NOTE: Change DNS providers as required.

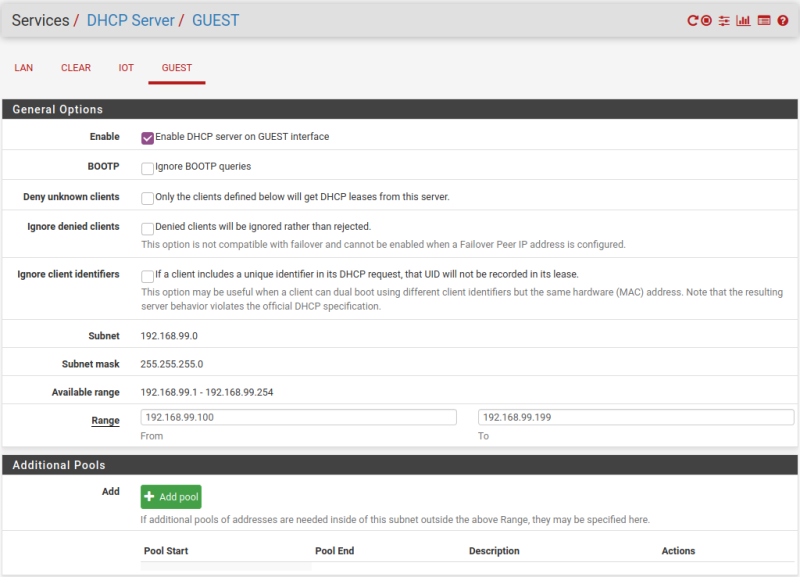

Configure DHCP for the GUEST Interface
Navigate to Services → DHCP Server.
Select CLEAR tab and set the DHCP server as follows:
- Enabled: Checked.
- Range:
- From: 192.168.99.100.
- To: 192.168.99.199.
NOTE: Set each interface to use x.x.x.100-199 for dynamic addresses and reserve x.x.x.10-99 for static allocations.
Depending on the number of devices in your network adjust this to suit your needs.
Return to Install pfSense or continue to NTP Configuration.
